tempLED RayBeam Lite V2

Hall Lighting

tempLED RayBeam Lite V2

100 | 150 | 200 | 300

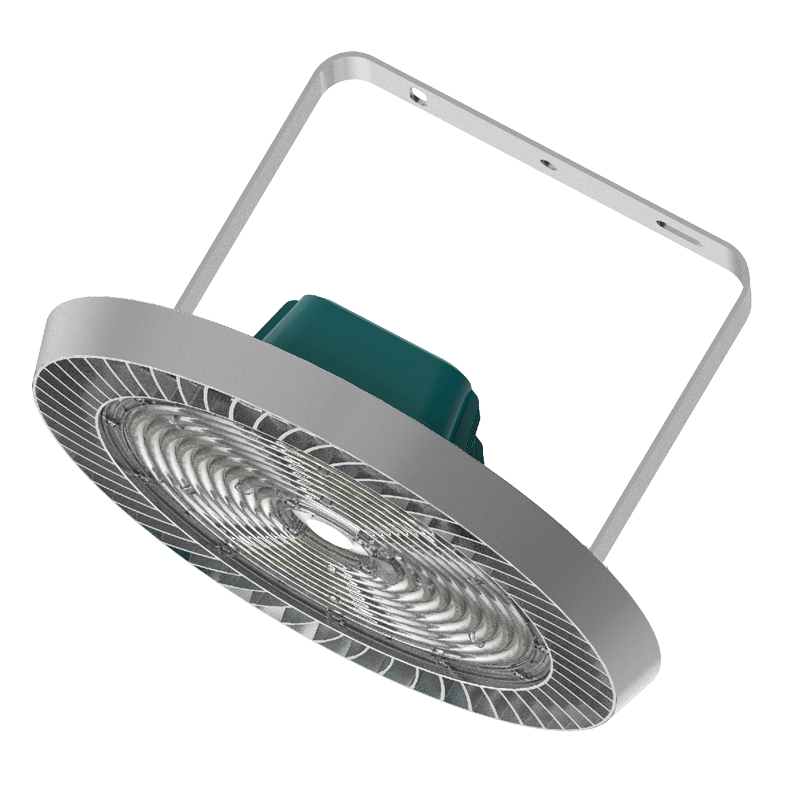

Our new tempLED RayBeam Lite V2 LED high-bay luminaire is the ideal lighting partner for industrial and logistics areas as well as production halls of all kinds with a high efficiency of up to 180 lumens per watt. The turbine-like housing dissipates waste heat particularly well and the dust-permeable heat sink prevents soiling. The completely modular LED high-bay luminaire is rounded off by its high performance data of up to 54,000 lumens and three practical beam angles, two of which are equipped with high-performance light control optics with linear technology to reduce scattered light. The completely modular LED high bay luminaire is rounded off by the multifunctional socket for optional control technology. A five-year full guarantee and ten-year spare parts guarantee provide you with a secure, long-term investment.

Applications

Technical details

Additional information

Luminous flux	18,000 lm, 27,000 lm, 36,000 lm, 54,000 lm
Beam angle	60°, 90°, 120°
Color temperature	4,000 kelvins, 5,000 kelvins
Ingress Protection	IP 65
Ambient temperature	-40°C to +50°C
System Performance	100 w, 150 w, 200 w, 300 w
