| Luminous flux | up to 8,880 lm, 11,100 lm, 13,875 lm, 18,500 lm, 22,200 lm, 27,750 lm, 33,300 lm, 37,000 lm, 44,400 lm |
|---|---|
| Beam angle | 80 x 150 degrees |
| Color temperature | switchable between 3,000, 4,000 and 5,000 kelvins |
| Ingress Protection | IP 66 |
| Ambient temperature | -40°C to +50°C |
| System Performance | 75 w, 150 w, 240 w |

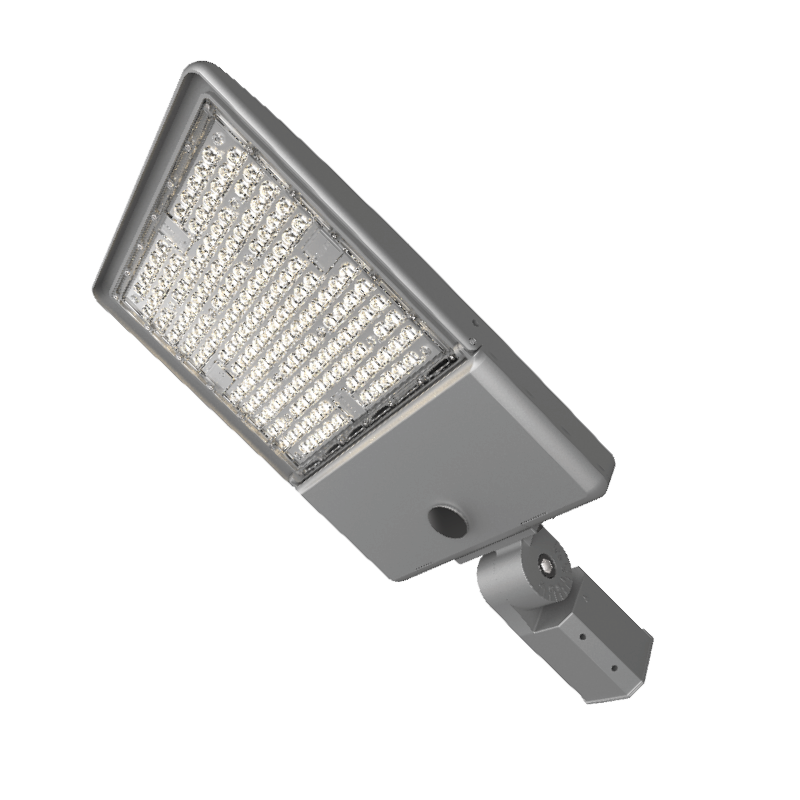

tempLED RayTrack Lite
Outdoor Lighting




tempLED RayTrack Lite
75 | 150 | 240
Our tempLED RayTrack Lite outdoor LED luminaire is the ideal lighting partner for driveways, parking lots and loading areas thanks to three power levels ranging from 75 to 240 watts. The integrated high-performance light control optics with a practical, asymmetrical beam angle (80 x 150 degrees) and full-cut-off technology effectively reduce stray light and direct the light exactly where it is needed. In addition, the light control optics can be customised in four ways to meet the customer’s individual requirements. The long-lasting and bright LED light field can be switched between color temperatures of 3,000, 4,000 and 5,000 Kelvin. The light output can be changed, allowing you to switch the RayTrack Lite between three power levels. The completely modular LED outdoor luminaire is rounded off by the warm white color temperature for increased protection of nocturnal creatures and the flexible mounting system for pole and facade mounting. A five-year full warranty and ten-year spare parts warranty give you a secure and long-term investment.
Technical details

Full warranty on lights

Spare parts warranty
